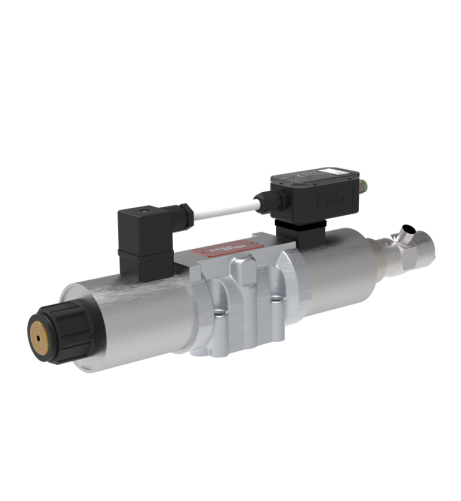

Proportional Directional Control Spool Valves with Position Sensor
PRMF6-10
ARGO-HYTOS PRMF6-10 – 80 L/min – 35.0 MPa – ISO 4401-05-04-0-05
Regulates actuator movement direction and speed via continuous volumetric flow regulation proportionally to input command signals. The PRMF6-10 integrates an LVDT spool position sensor with 520 h corrosion protection for high-precision machine monitoring in mobile and industrial sectors. Current price available from Parts Trading Corporation
Technical Highlights
-
Max Operating Pressure: 35.0 MPa (350 bar)
-
Max Flow Rate: DC: 80 L/min (21.13 GPM); AC: Not specified in datasheet
-
Voltage / Coil configuration: 24 V DC (Limit current 1.1 A)
-
Mounting Standard: ISO 4401-05-04-0-05
-
Position Sensor: Analogue output (0-5 V, 0-10 V, 12-3 V, or 4-20 mA) via M12x1 connector
