PILOT OPERATED PRESSURE RELIEF VALVE
PRV

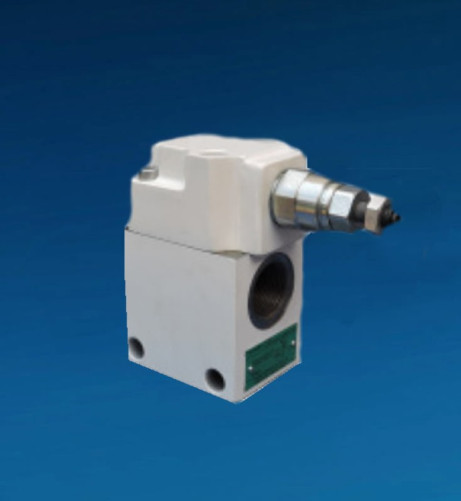

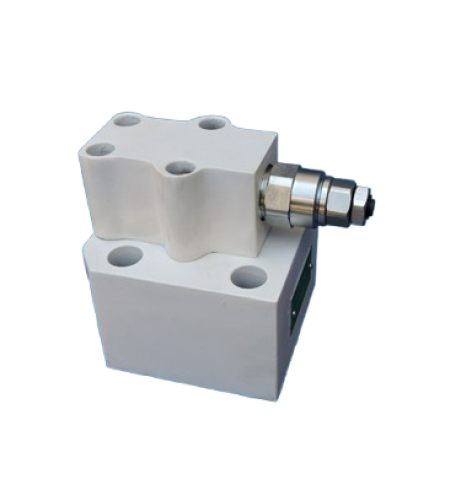

Prism Hydraulics PRVS1010001 – 100 L/min – 31.5 MPa – ISO 6264
This pilot operated spool valve provides high-pressure system limitation up to 100 L/min. The PRVS1010001 features subplate mounting conforming to ISO 6264 for standardized manifold integration. Current price available from Parts Trading Corporation
-
Max Operating Pressure: 31.5 MPa (315 bar) maximum for ports A, B, and P
-
Max Flow Rate: 100 L/min (26.4 GPM) peak volumetric flow for size 10
-
Mounting Standard: ISO 6264 subplate mounting construction
-
Actuation Type: Pilot Operated Spool Type with adjustable set screw
-
Temperature Range: -20 °C to +70 °C fluid operating range
