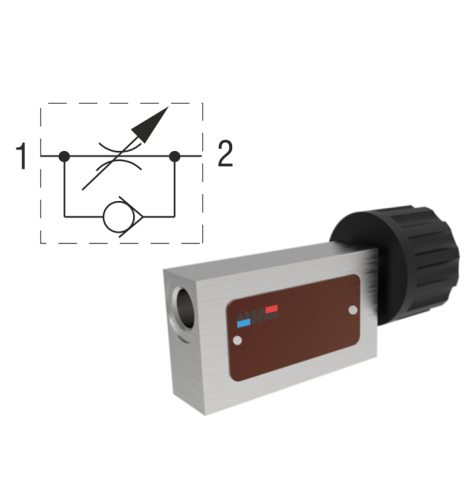

THROTTLE WITH CHECK VALVE
ARGO-HYTOS VSO1
ARGO-HYTOS VSO1-04/R – 20 L/min – 10.0 MPa – In-line G1/4
Provide precise flow regulation with optional bypass or serial check valves using hardened precision components. This VSO1-04/R needle valve features a linear adjustment hand screw with a hard stop for fine-tuning in-line or hose assemblies. Current price available from Parts Trading Corporation
-
Max Operating Pressure: 10.0 MPa (100 bar)
-
Max Flow Rate (DC): 20 L/min (5.3 GPM)
-
Mounting Standard: In-line G1/4
-
Temperature Range: -30 °C to +100 °C (NBR)
