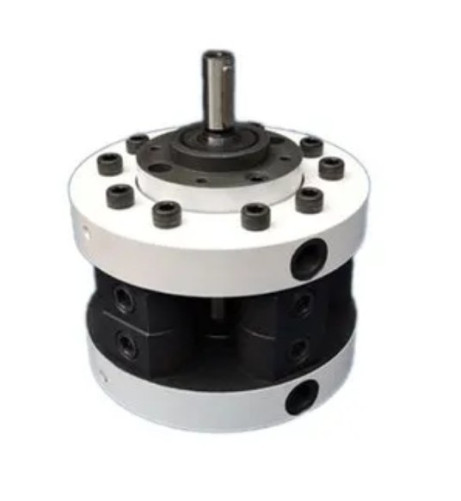

PRISM 1RP2 Radial Piston Pump – 2 Elements – Up to 350 bar – 300–2000 RPM

Achieve stable high-pressure output in compact hydraulic systems with the PRISM 1RP2 radial piston pump. Oil-immersed, valve-controlled design ensures reliable fixed delivery and long service life. Face-mounted construction with bi-directional rotation enables easy integration in industrial power units requiring consistent flow and pressure performance.

• Pumping Elements: 2 radial pistons (fixed delivery design)

• Operating Pressure: Up to 350 bar (model dependent, e.g., 2C rating)

• Speed Range: 300–2000 RPM operating range

• Delivery Port: G 1/4 Female, suction direct from tank

• Operating Limits: Viscosity 16–32 cSt, temperature -10°C to +80°C, cleanliness ISO 16/13
