FEED & POWER HAND PUMP

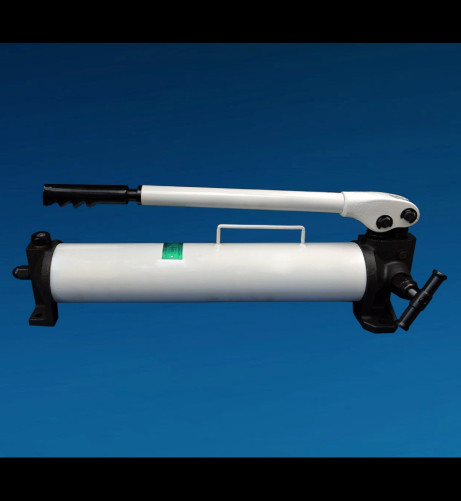

HP 12 / HP 16 HAND PUMP
Prism Hydraulics HP12 & HP16 Series – 700 bar / 350 bar – Single-stage hand pump – Collapsible lever, sealed piston design
Description
Built for reliable manual hydraulics, the Prism Hydraulics HP12 & HP16 Series hand pumps deliver stable pressure output with hardened piston durability and integrated safety valves. OEM-accurate dimensions ensure direct-fit replacement. HP12 & HP16 Series price available from Parts Trading Corporation. For sale with full specs and replacement support to minimize downtime.
Technical Highlights
-
Max Working Pressure: 700 bar (HP12/HP12C) / 350 bar (HP16/HP16C)
-
Flow Capacity: 2.8 cc/stroke (HP12) / 5.0 cc/stroke (HP16)
-
Construction Type: Sealed piston with ball-type suction & delivery valves
-
Reservoir Capacity: 1.2 L oil tank, 1.0 L usable displacement
-
Operating Force & Weight: ≈400 N lever force, 9 kg (without oil)
