VARIABLE DISPLACEMENT AXIAL PISTON PUMP
VARIABLE DISPLACEMENT AXIAL PISTON PUMP

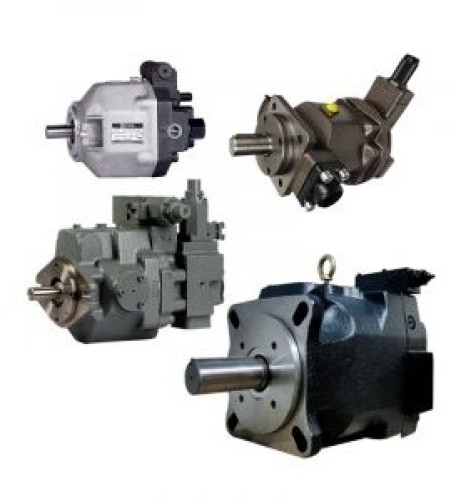

Huade HD-A10VSO – 18 to 140 cc/rev – 350 bar Max – Axial Piston Variable
Increase actuator speed and cut energy loss with precise, demand-based flow control. The HD-A10VSO delivers up to 350 bar (5100 PSI) peak pressure and stepless displacement adjustment, reducing heat, stabilizing load response, and extending system life. OEM-accurate dimensions ensure true direct-fit replacement for open-circuit hydrostatic drives.
-
Pressure Rating: 280 bar (4000 PSI) nominal; 350 bar (5100 PSI) peak
-
Displacement Range: 18–140 cc/rev across 6 frame sizes
-
Speed Capability: Up to 3300 RPM; 0.8 bar absolute minimum inlet pressure
-
Control Options: DR, DFR/DFR1, ED/ER swashplate regulation
-
Through-Drive: 100% torque transmission (SAE A–D mounting)
