FIX DISPLACEMENT AXIAL PISTON PUMP (BENT AXIS)
THM-A2FO BENT AXIS AXIAL PISTON PUMP

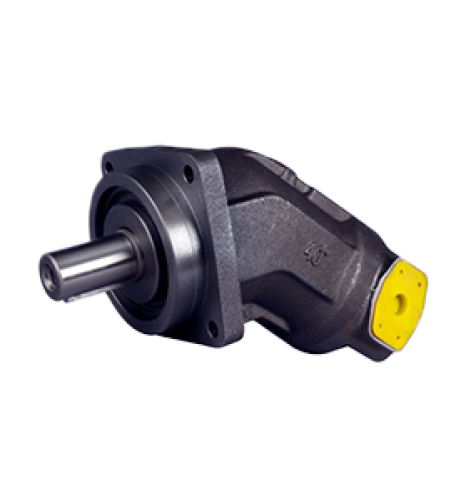

THM A2FO Bent Axis Axial Piston Pump – Up to 450 bar – 10–180 cc – 261 L/min
Deliver maximum hydraulic power with high efficiency and compact weight. The THM A2FO fixed displacement bent axis pump converts displacement and speed into consistent high-pressure flow up to 450 bar, driving faster cycle times, higher torque output, and dependable uptime in mobile and industrial systems. Designed for open circuits with optimized durability and service life.
-
Displacement Range: 10–180 cc/rev (Series 61)
-
Pressure Rating: 400 bar nominal, 450 bar peak
-
Max Flow: Up to 261 L/min (Size 180 @ 1450 rpm)
-
Speed Range: Up to 6000 rpm (size dependent)
-
Efficiency & Design: Bent-axis axial piston, fixed displacement, ISO flange mounting, mineral oil 16–36 mm²/s (optimum)
